BodorWelder 1500 Pro The Self-Cooling Handheld Laser Welding Machine
Bring your welding projects to the next level. With BodorWelder 1500 Pro, you can produce quality welds easily. Thanks to its durability, BodorWelder 1500 Pro is ideal for operations at different workspaces. From prototypes to large-scale production, this machine shows its excellence across the board.
Reliable in extreme cold and heat
Reliable in extreme cold and heat
As a strong indicator of its durability, BodorWelder 1500 Pro is able to maintain stable performance in -20℃ ~ 60℃ and in up to 90% relative humidity levels under rigorous laboratory conditions. It as well keeps consistent welding quality across a diverse range of welding metal pieces.
Self-cooling feature
Self-cooling feature
The key to self-cooling comes from Bodor’s technology of Constant Temperature Circulation. The recyclable refrigerant absorbs excessive heat within the system, transferring the heat out via the heat sink. This ability to withhold temperature variations and high humidity is backed up by laboratory testing for over 10,000 hours.
Continuous light output
Continuous light output
Regardless of external environments, BodorWelder 1500 Pro’s high-efficiency compressor generates laser power continuously 24/7 without disruptions, bringing numerous advantages to welding metals in terms of bending, hardness, and tensile strengths.
High efficiency for different work cases
Steady power
Maintain stable performance in harsh environments. Tested by international laboratories, BodorWelder 1500 Pro generates continuous light output anywhere between -20 to 60 degree Celsius as well as in up to 90% relative humidity.
Superior quality
Adjustable welding power up to 1500W. BodorWelder 1500 Pro provides you with constant processing quality and in line with the most rigorous industrial expectations.
User-friendly operations
Welding parameters come with the machine. No matter what skill levels you are, you will be able to weld perfectly with Bodor’s Welding Process Database.
Simple control
Adjust and store your customized welding solutions in one knob. The all-in-one control knob integrates indispensable functions to facilitate your welding projects.
Portability
Lightweight, tool-less assembly. The covering area of 0.24㎡ offers maximum flexibility and convenience for your everyday work, further improving productivity.
Features & enhancements
Intelligent welding process support
Give your welding process additional drive with intelligent functions. The Bodor Welding Process Database incorporates welding parameters for steel from 1 to 4 mm in terms of flat welds and fillet welds. Working as a beginner’s guide, it allows users with different levels of expertise to weld effortlessly.

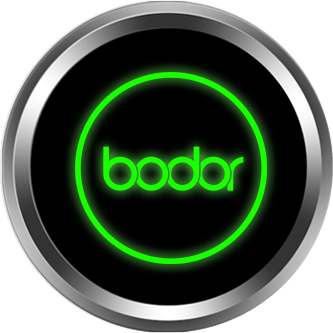

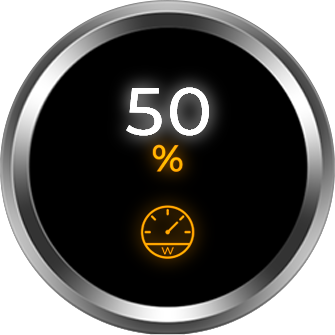

Smart control knob

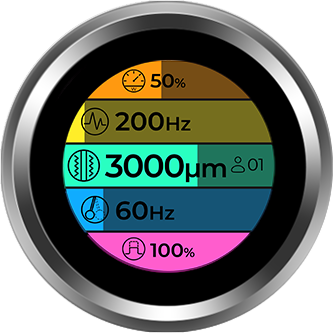

The control knob is easy to navigate. Users are able to manage their welding solutions in one setting. They can select welding process and adjust welding parameters (e.g. power, weld bead width, frequency, etc) , and the knob will automatically store customized parameters for their operations in the future.
Portable design, integrated power structure
Without built-in water tanks or cooling fans, BodorWelder 1500 Pro takes up a covering area of 0.24㎡. This compact machine aims to help users with complex welding jobs in diverse working scenarios. It also comes with a set of Bodor welding nozzles, fulfilling all kinds of requirements.
Specifications & parameters
| Laser output power | 1500W |
| Maximum welding material thickness | 4mm |
| Optical fiber cable length | 10m |
| Overall weight | 55kg |
| Cooling method | Self-cooling |
| Dimensions | 760mm×325mm×540mm |
| Laser output | Continuous |
| Operating ambient temperature range | -20℃ - 60℃ |
Applicable industries
Designed for smooth production with great precision, discover BodorWelder 1500 Pro’s approach to multiple industries.
Sheet metal
The future of sheet metal processing relies on intelligent production. Let BodorWelder 1500 Pro take care of your sheet metal welding project with intuitive operation.
Medical devices
Welding with extreme delicacy, BodorWelder 1500 Pro brings excellence to the production of medical devices, such as syringes, pacemakers, ultrasound, and CT scanners.
Vehicles
Whether it is automobiles or freight trucks, BodorWelder 1500 Pro offers tailor-made solutions for the automotive industry. It is applicable in particular to the manufacturing of sheet metal auto parts like brackets, hinges, spring seats, caps, and covers.
Home appliances
Thanks to its low heat generation, BodorWelder 1500 Pro demonstrates remarkable precision when it comes to household electronics. With minimal thermal deformation, BodorWelder 1500 Pro enhances the makes of kitchen and bathroom fixtures.
Billboards
Construct the supporting frame of billboard signs with BodorWelder 1500 Pro. The capacity to handle large batches of sheet metal is a great indicator of its reliable quality.
