Function Enhancement


Entry-level fiber laser metal tube cutting machine K Series

Expert High Speed Cutting Database

Fast air cutting efficiency increases by 37% when cutting carbon steel.

Bodor Lightning

The lightning-quick piercing process combined perfectly with BodorGenius completes the whole piercing just during the laser cutter head moves down on Z-axis.

Angle Steel and Channel Steel Cutting

Angle steel and channel steel cutting are standard with no need for additional installation.

Entry-level fiber laser metal tube cutting machine K Series

Four-side Edge Searching, Higher Precision

Optimized edge searching method and algorithm guarantee higher cutting precision and better steadiness of the laser cutter.

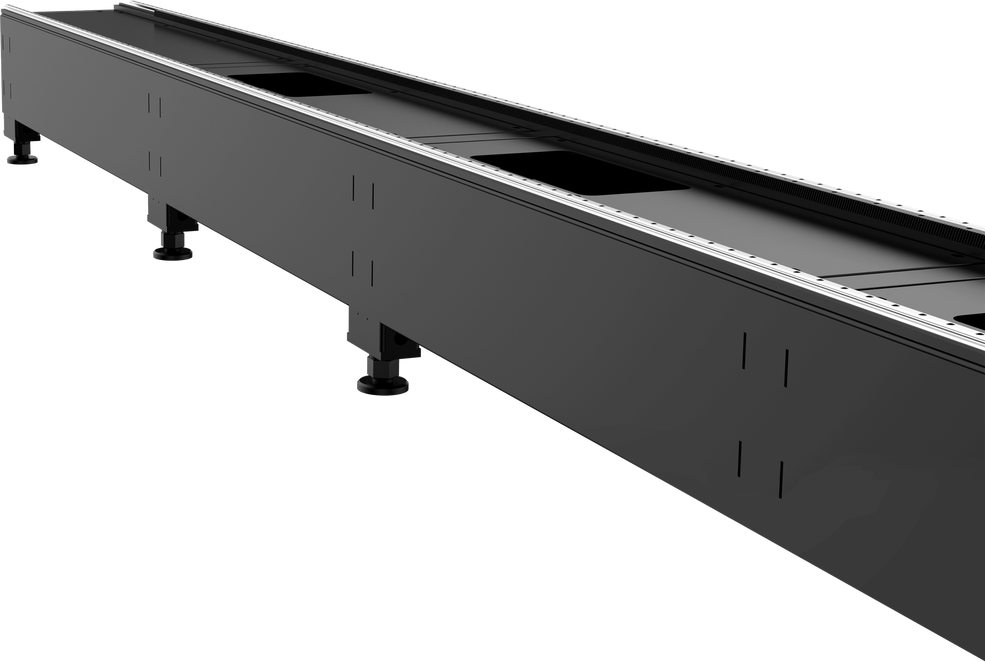

Mechanical Configuration


Entry-level fiber laser metal tube cutting machine K Series

Specialized Laser Head BodorGenius T

The slender nozzle allows the laser tuber cutter to avoid interference and cut various types of tubes, including special-shaped tubes like H-Beam, P-Beam, I-beam, etc.

Entry-level fiber laser metal tube cutting machine K Series

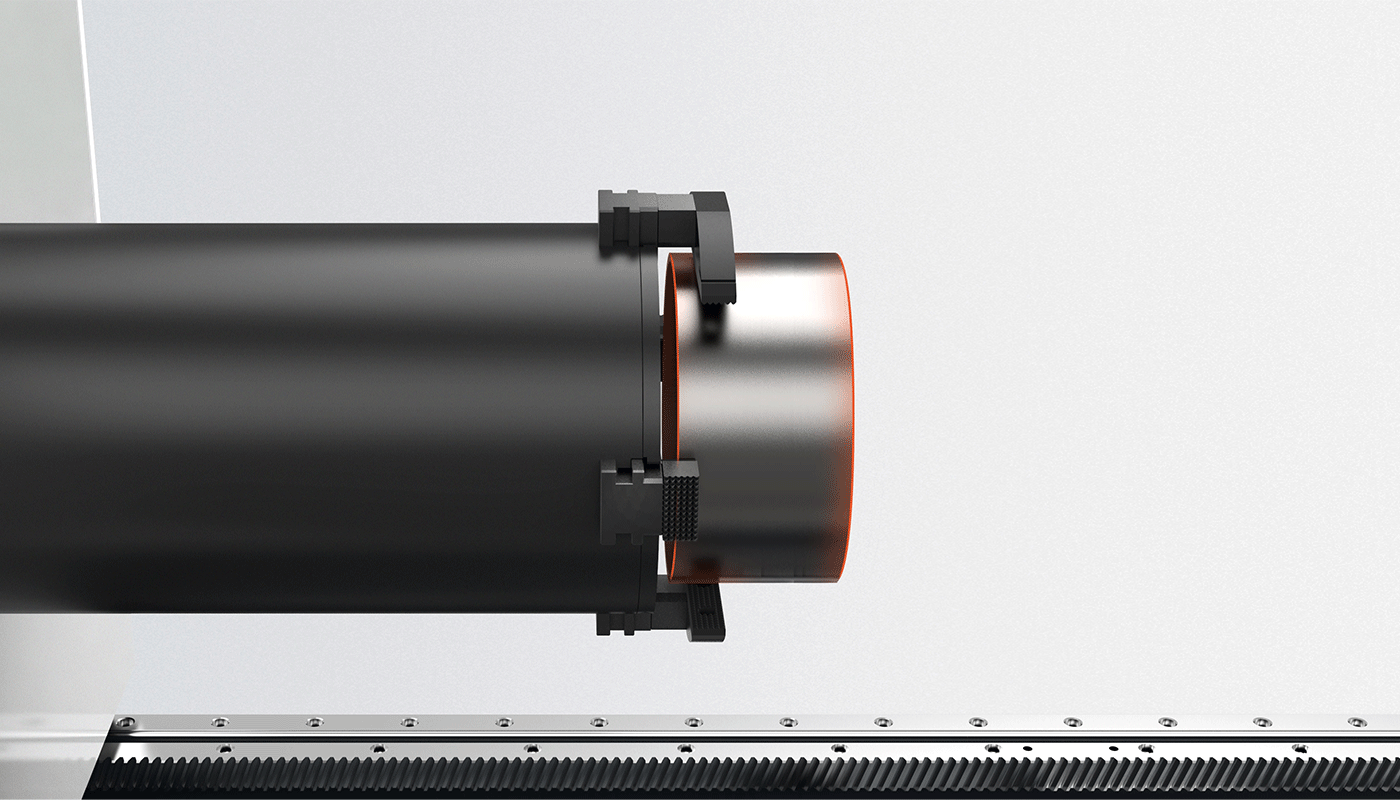

Pneumatic Chuck

Cutting machine clamping becomes convenient, easy and fast, with 3 seconds at the soonest to clamp and high repeat precision

Software


BodorThinker

BodorThinker is a high-end intelligent control system for a CNC laser cutter, featuring reliable stability, convenient installation and adjustment, safe production, multiple functionality, and robust performance. With BodorThinker, your laser cutting solutions can be modular, customized, automated and information-based.

BodorMES

With BodorMES, information insolation of manufacturing is broken. You can manage orders, production, pricing, equipment, and analyze cost to achieve a transparent, visualized, and quantifiable production.

BodorNest Tube

The software provides great convenience: offline use available, processing and setup having it all, various special-shaped tubes like channel steel, I-beam processable.

Design


redif

Industrial Design Award Winner

"Oscar in Design", two of the top three world industrial design awards

hander

Remote Control

A mango shape and convenient magnetic securing help you control with just one hand.

Technical Data

Cutting Samples

Model K1 K2 K3
Laser Output Power 6000w/3000w/1500w 6000w/3000w
Effective Round Tube Cutting Diameter φ6-φ120mm φ8-φ230mm φ25-φ356mm
Effective Square Tube Cutting Diameter □6-□110mm □8-□230mm □25-□356mm
Rectangular tube Edge Length 6-110mm 8-230mm 25-356mm
X/Y-axis positioning accuracy 0.05mm/m
X/Y-axis repositioning accuracy 0.03mm
X axis maximum speed 100m/min 90m/min
Y axis maximum speed 60m/min 60m/min
