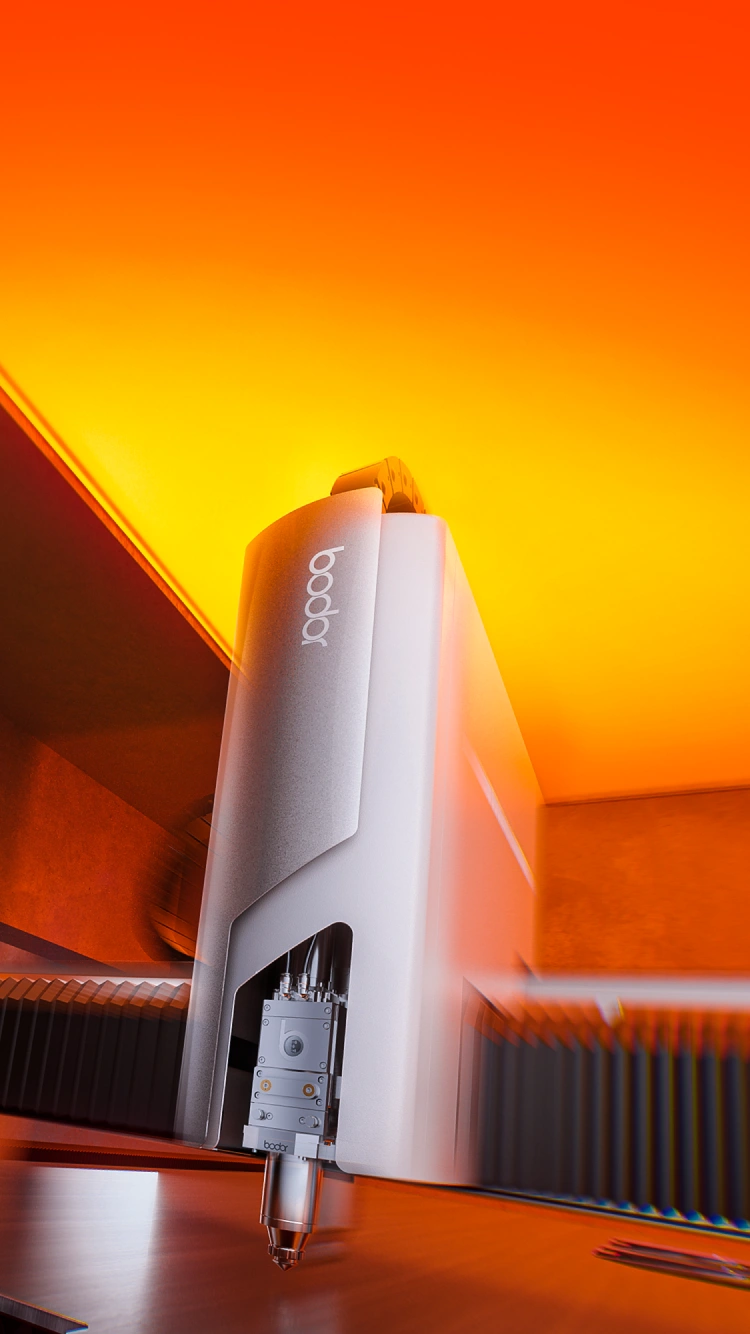

Bodor P series all-around sheet metal fiber laser cutting machine
The Bodor P Series sheet metal laser cutting machines are the epitome of cutting-edge laser technology and outstanding performance. Craftsmanship, automation features, and safety measures have been finely tuned in our P Series to provide an unparalleled cutting experience.
High performance for your high efficiency
Supercharged productivity
Bodor P Series laser cutting machines are engineered to turbocharge your productivity. Say goodbye to tedious operations – just a single click starts automated cutting, saving you valuable time and enhancing efficiency.
Resource efficiency
Our commitment to minimizing resource waste is unwavering. The P Series is designed for efficient use of materials, gases, and electricity, reducing costs and environmental impact while maximizing value.
User-friendly operation
Simplifying operations is our forte. Our one-second edge finding technology eliminates the hassle of manually locating cutting positions. An intuitive touchscreen interface makes operation straightforward, requiring minimal training for seamless integration.
Safety first
Safety and maintainability are paramount. Equipped with visual collision detection and active collision avoidance functions, our equipment ensures operational safety. Automatic cleaning and intelligent air pressure control extend equipment lifespan and reduce maintenance costs.
Top-notch cutting quality
We are committed to delivering exceptional cutting quality every time. This translates to more accurate products, reduced waste, and happier customers. High-speed cutting processes provide faster cutting speeds for increased production efficiency.
Features & enhancements
One-second edge finding
Our Space Eye technology in the Bodor P Series ensures rapid material positioning and focus calibration. Using an optical camera, the system automatically identifies the material's position and then locates its vertices and angular offset within 3 seconds. This visual and algorithmic innovation streamlines operations, enabling automatic cutting, recognition, and focus compensation, saving precious working hours.
Visual collision avoidance
Our highly intelligent visual collision avoidance technology provides multi-dimensional warnings, suitable for various operating scenarios. Users can select high or low sensitivity modes to ensure operator safety, eliminating concerns about collisions and safety during equipment operation.
Laser head active obstacle avoidance
To maintain cutting process stability, we employ optimized tracking algorithms to identify obstacles in advance, enabling the motor to perform at its best. When an obstacle is detected, the system rapidly responds, avoiding the obstacle. This addresses issues of distortion in thin plate batch cutting, ensuring high-efficiency cutting results.
Automatic nozzle changer
The Bodor P Series introduces the convenience of rapid nozzle replacement without manual intervention. It also includes automatic calibration and cleaning features, reducing repetitive manual labor and saving time costs. A high-precision transmission system guarantees accuracy and stability with each change, providing reliability. The fully enclosed protective design adds an extra layer of safety.
Bevel cutting (optional)
Our bevel cutting function allows precise angle cutting, supporting various bevel shapes. This results in gapless assembly solutions, reducing filler costs, and simplifying the welding process. This not only improves welding quality but also reduces labor and material costs, meeting high-quality welding demands.
Remnant typesetting
Our remnant typesetting function is incredibly convenient, allowing for graphic output with just a smartphone photo. This integrated system allows programs to be called in cutting software, automatically completing nesting without complex measurements. It also boasts robust environmental adaptability, addressing various complex production environments, providing users with a convenient nesting solution.
Compatible nesting software with Tekla
The nesting software for the Bodor P Series has strong compatibility with Tekla software. It can automatically split the overall drawing into individual parts, directly reading part attributes, including material, thickness, and quantity. Multi-layer display makes marking, outlining, and labeling more convenient. Smart matching automatically selects the most suitable cutting parameters based on material information, achieving efficient nesting and maximizing sheet utilization. This integration improves work efficiency and saves time and resources.
Specifications & parameters
P3
P4
P6
P12
| Working area | 3048mm*1524mm |
| Laser output power | 60000W / 30000W / 24000W / 12000W / 6000W / 3000W |
| X/Y-axis positioning accuracy | ±0.05mm/m |
| X/Y-axis repositioning accuracy | 0.02mm |
| X/Y-axis max. linkage acceleration | 4G |
| X/Y-axis max. linkage speed | 200m/min |
| Working area | 4000mm*2000mm |
| Laser output power | 60000W / 30000W / 24000W / 12000W / 6000W / 3000W |
| X/Y-axis positioning accuracy | ±0.05mm/m |
| X/Y-axis repositioning accuracy | 0.03mm |
| X/Y-axis max. linkage acceleration | 4G |
| X/Y-axis max. linkage speed | 200m/min |
| Working area | 6500mm*2500mm |
| Laser output power | 60000W / 30000W / 24000W / 12000W / 6000W |
| X/Y-axis positioning accuracy | ±0.05mm/m |
| X/Y-axis repositioning accuracy | 0.03mm |
| X/Y-axis max. linkage acceleration | 2.8G |
| X/Y-axis max. linkage speed | 200m/min |
| Working area | 12500mm*2600mm |
| Laser output power | 60000W / 30000W / 24000W / 12000W |
| X/Y-axis positioning accuracy | ±0.05mm/m |
| X/Y-axis repositioning accuracy | 0.03mm |
| X/Y-axis max. linkage acceleration | 2.8G |
| X/Y-axis max. linkage speed | 200m/min |
Applicable industries
Bodor P Series provides all-around laser cutting technologies for industries such as steel bridge, pressure vessel, construction machinery, special vehicle, mining machinery, and ship container. Its high performance can definitely ensure your productivity of metal processing.
Steel bridge
For complex shapes and large-scale steel bridge components, P series can provide high precision and efficiency cutting.
Pressure vessel
P series can handle smooth edges and low deformation cutting of pressure vessel parts with various materials and thicknesses.
Construction machinery
Heavy-duty and wear-resistant construction machinery parts, such as buckets, blades, booms, etc., can be processed by P series.
Special vehicle
P series can customize and optimize the cutting of special vehicle parts, such as chassis, cabins, tanks, etc.
Mining machinery
P series can cut high-strength and abrasion-resistant mining machinery parts, such as drill bits, crushers, conveyors, etc.
Ship container
P series can efficiently and accurately cut ship container parts, such as panels, frames, doors, etc.
HSP Gripen's Success Story
Through the wise transition from a plasma cutting machine to a 22kW high-power laser, a Swedish grapple manufacturer reaps high precision and superior cut quality.
8x
Precision increased
98%
Products with taper deceased
100%
After-sales service satisfaction
“Our P6 laser cutting machine has been running for 6 months, and we are more than satisfied. Besides the powerful machine itself, Bodor’s warm and professional after-sales service pleasantly surprises us the most. They have skilled experts who set the equipment and cut parameters properly for us and are always very fast to respond. They also own sufficient spare parts for any in-need occasions. Thank Bodor for such a great service experience!”
Magnus Faxbrink
Plant Manager of HSP Gripen
