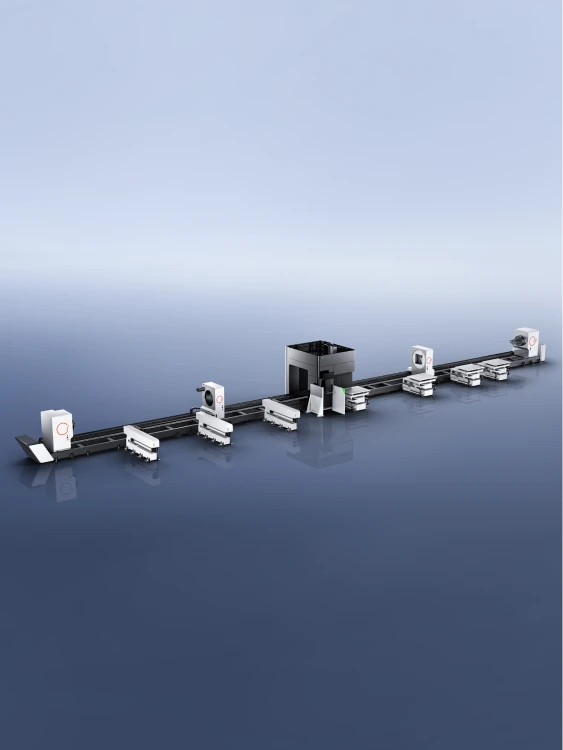

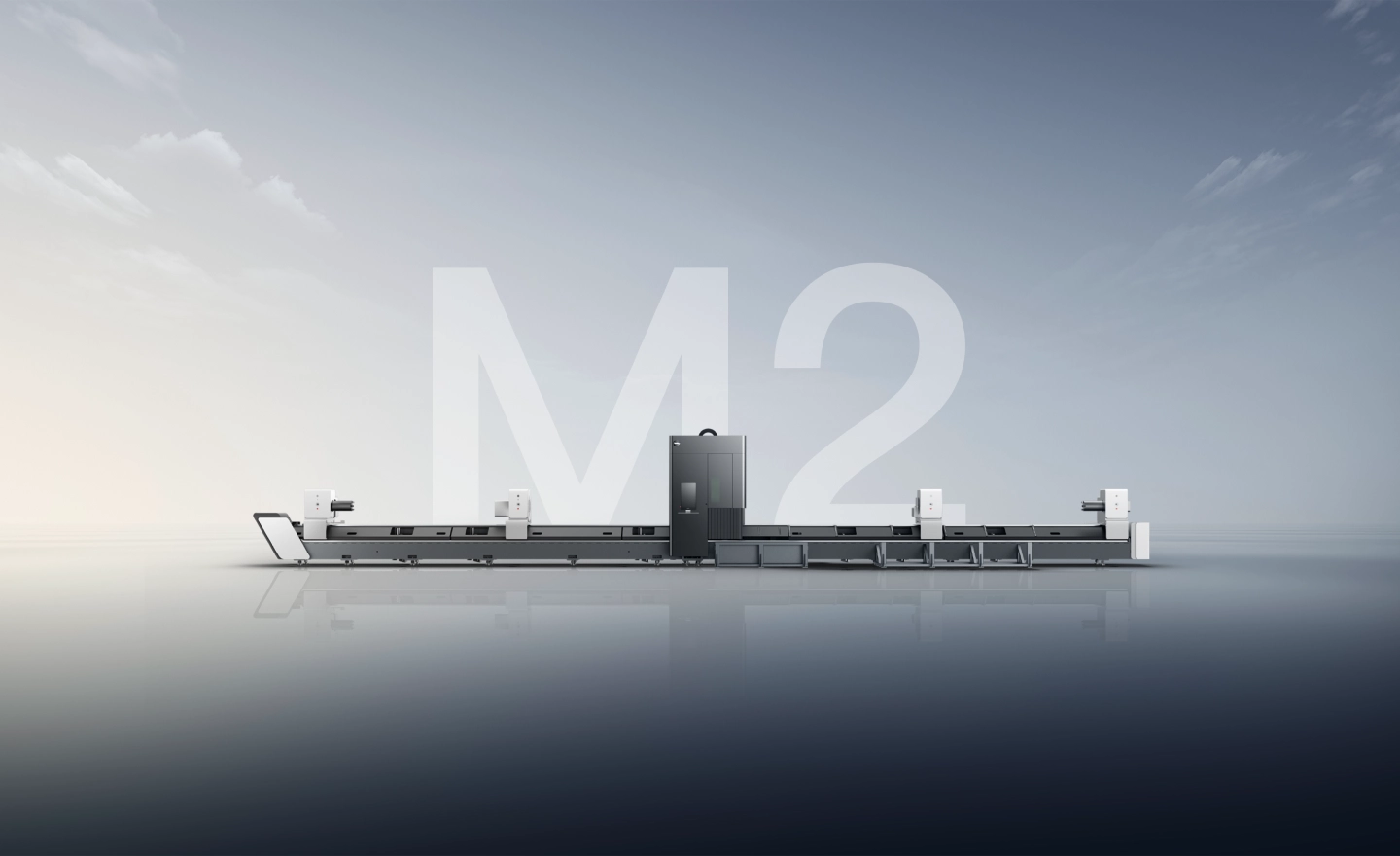

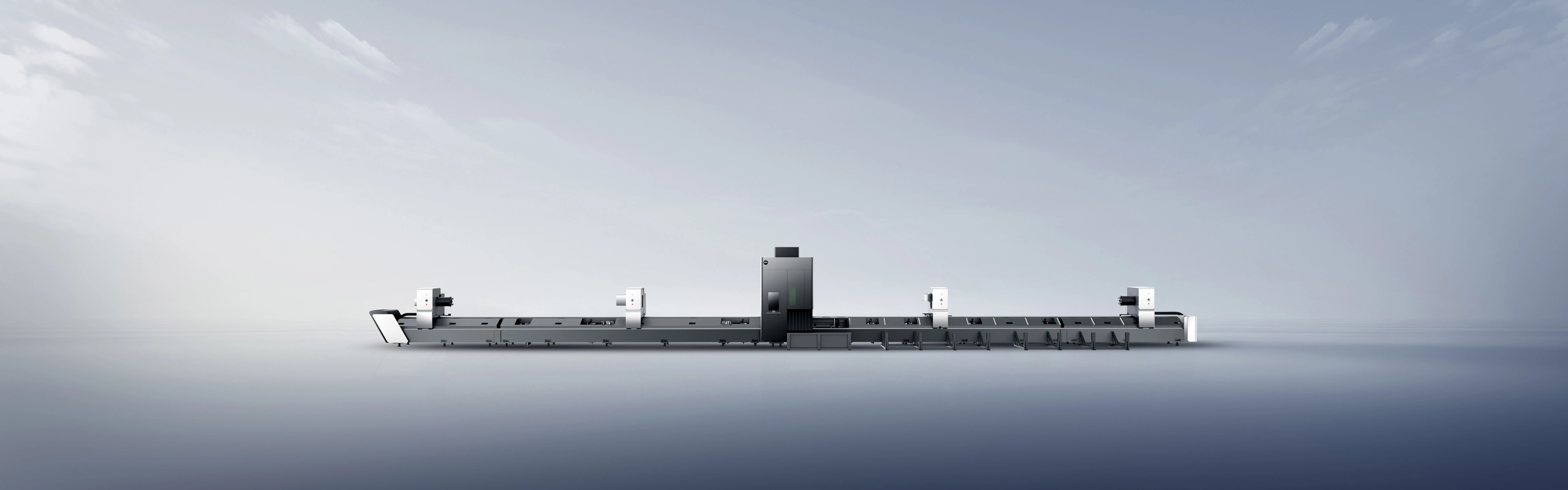

Bodor M Series Flagship Fiber Laser Metal Tube Cutting Machine

Maximum capacity, for all tube cutting demands.

banner-mseries

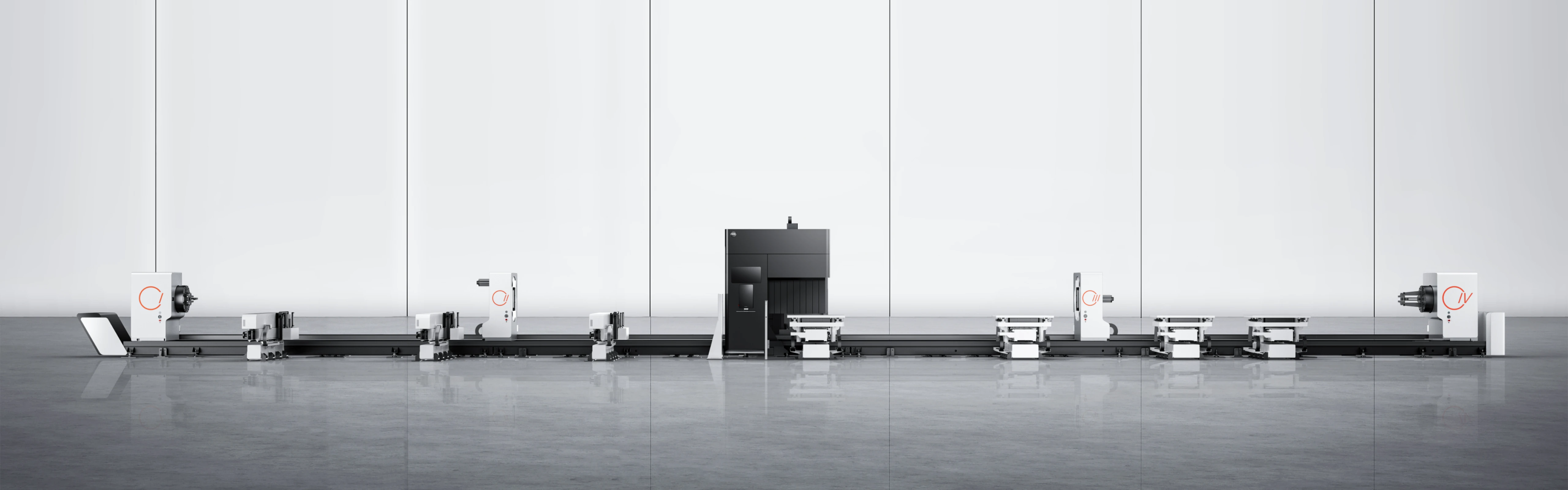

Enter the world of 4-chuck laser cutting

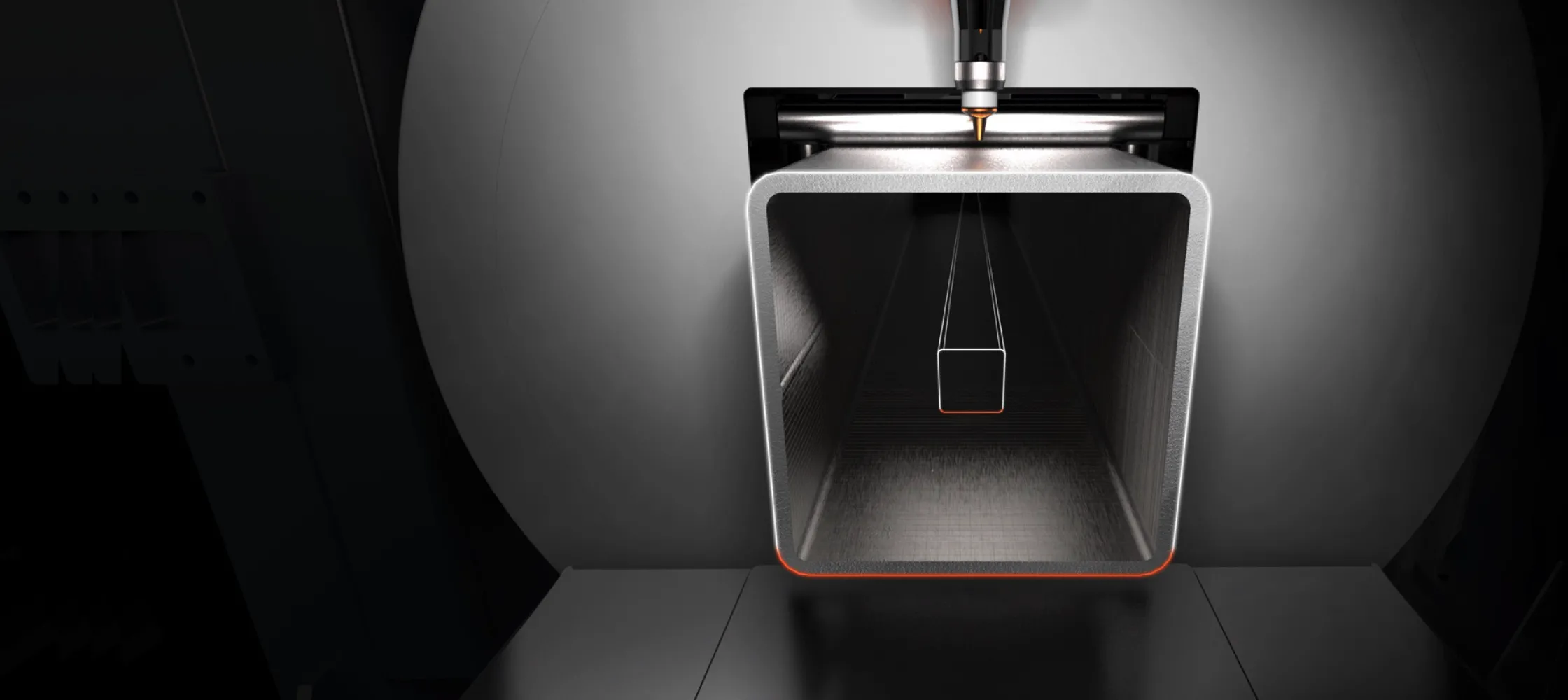

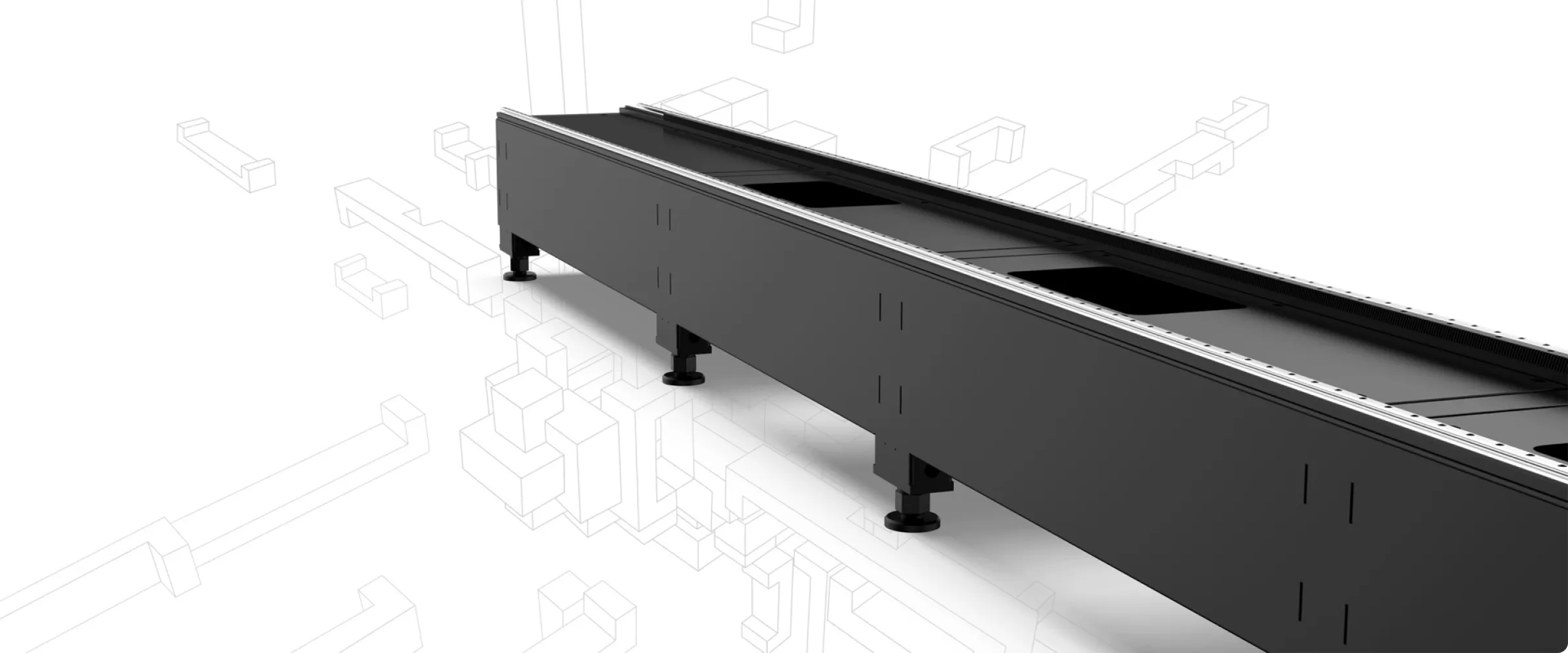

Extra large cutting range

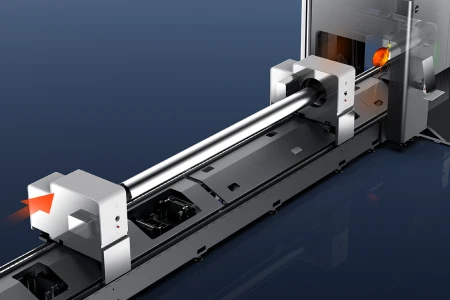

The M series adopts a square-round structure chuck, which allows it to cut the maximum round tube diameter and the maximum square tube side length, providing users with more processing options.

0 Excess Material Processing, Waste Reduction

Minimize manufacturing waste from the source. During operations, M series will help you utilize every piece of material to the largest extent possible, reducing waste and improving cost-effectiveness.

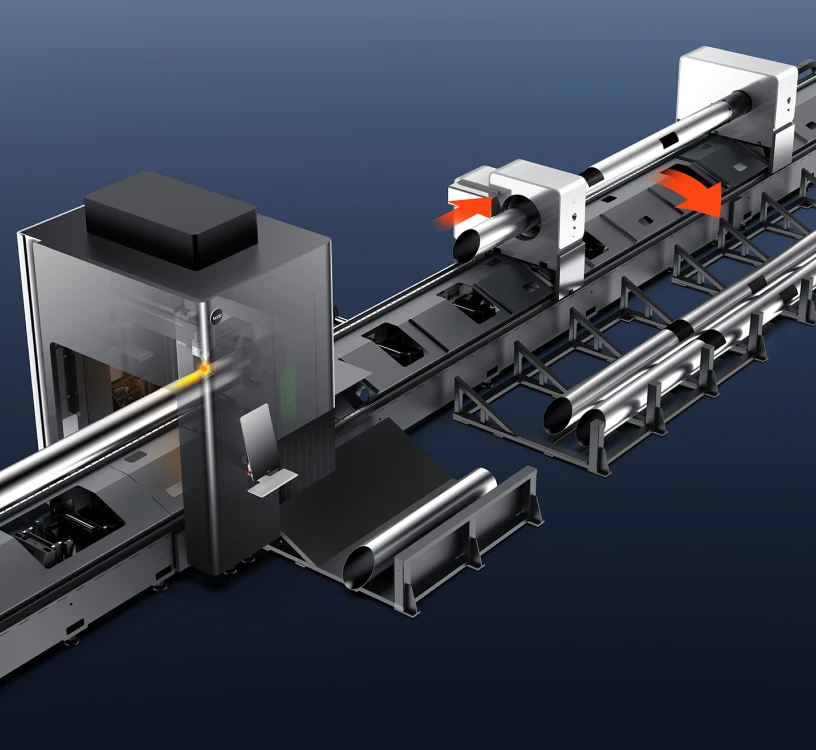

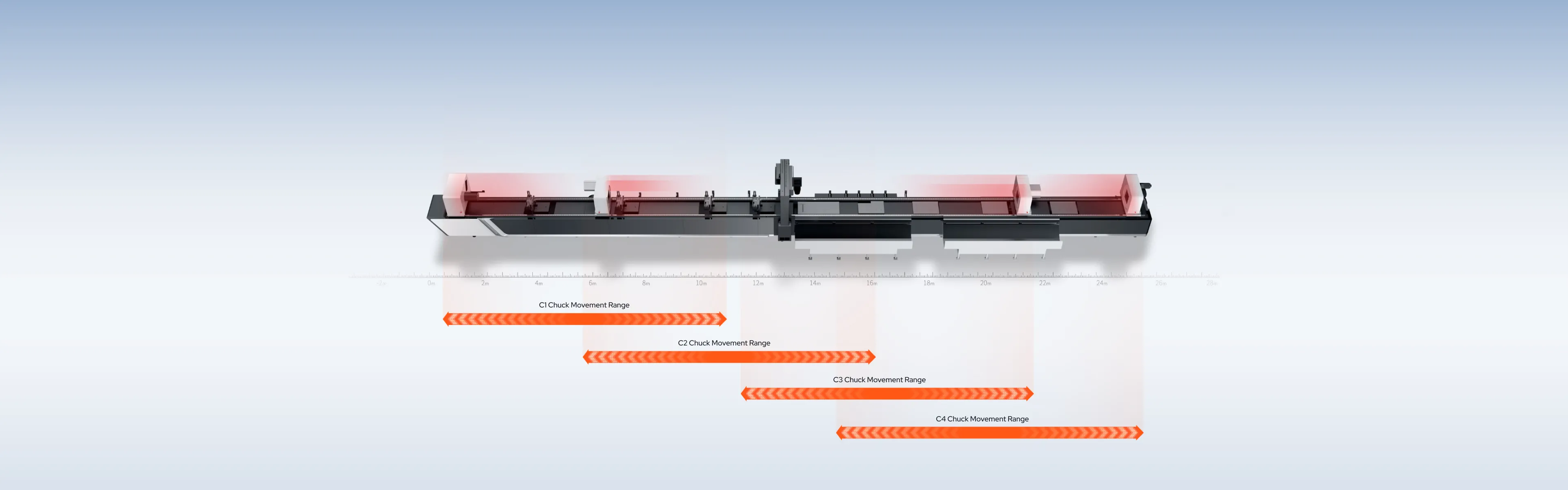

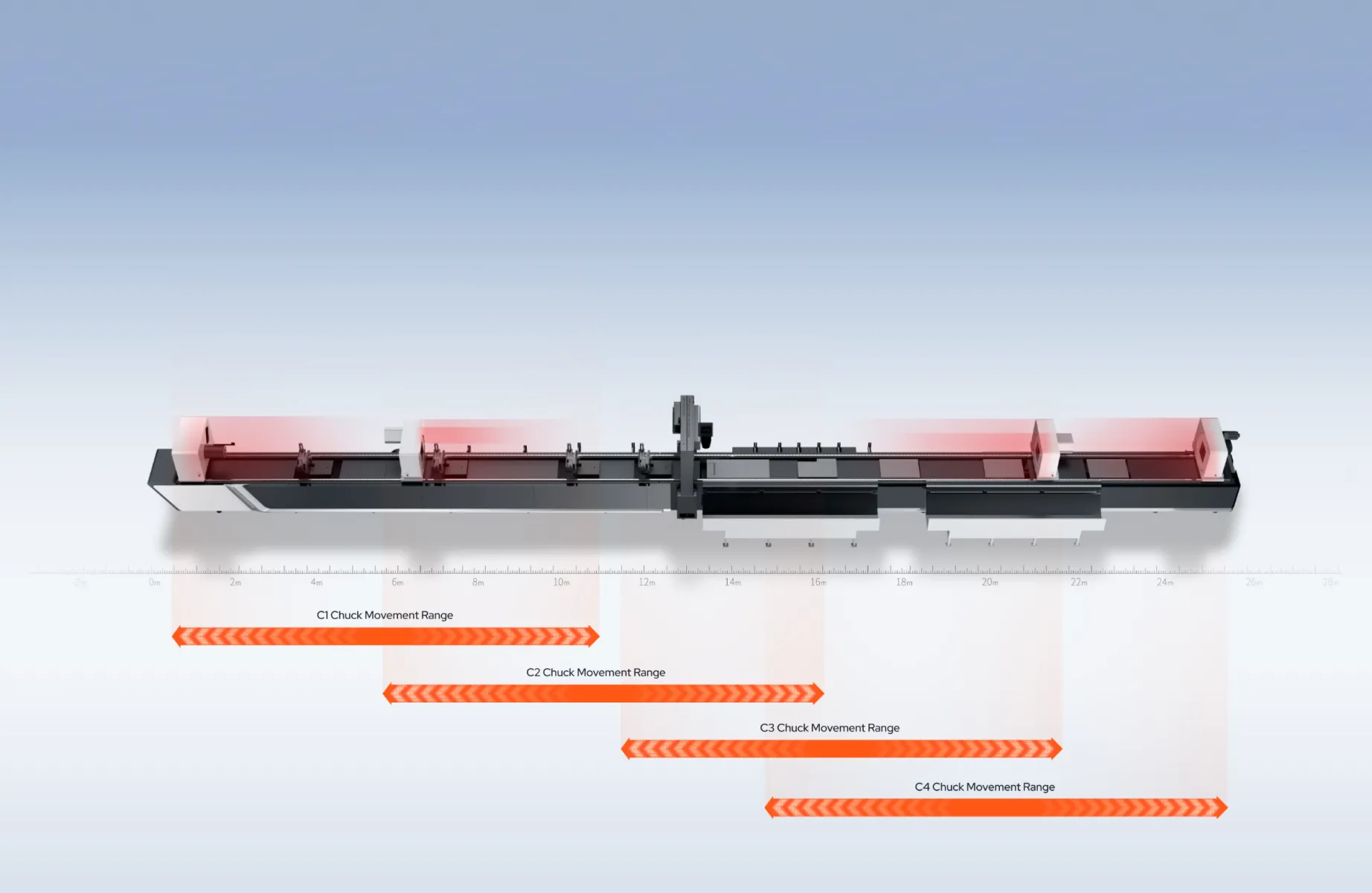

Increased flexibility

The M series’s four chucks can be adapted to different processing scenarios. By intelligently switching between the heavy tube processsing and high-efficiency modes, the machine empowers you to tackle diverse cutting tasks with ease.

Features & enhancements

mseriesFeaturesContent-edgeCollision

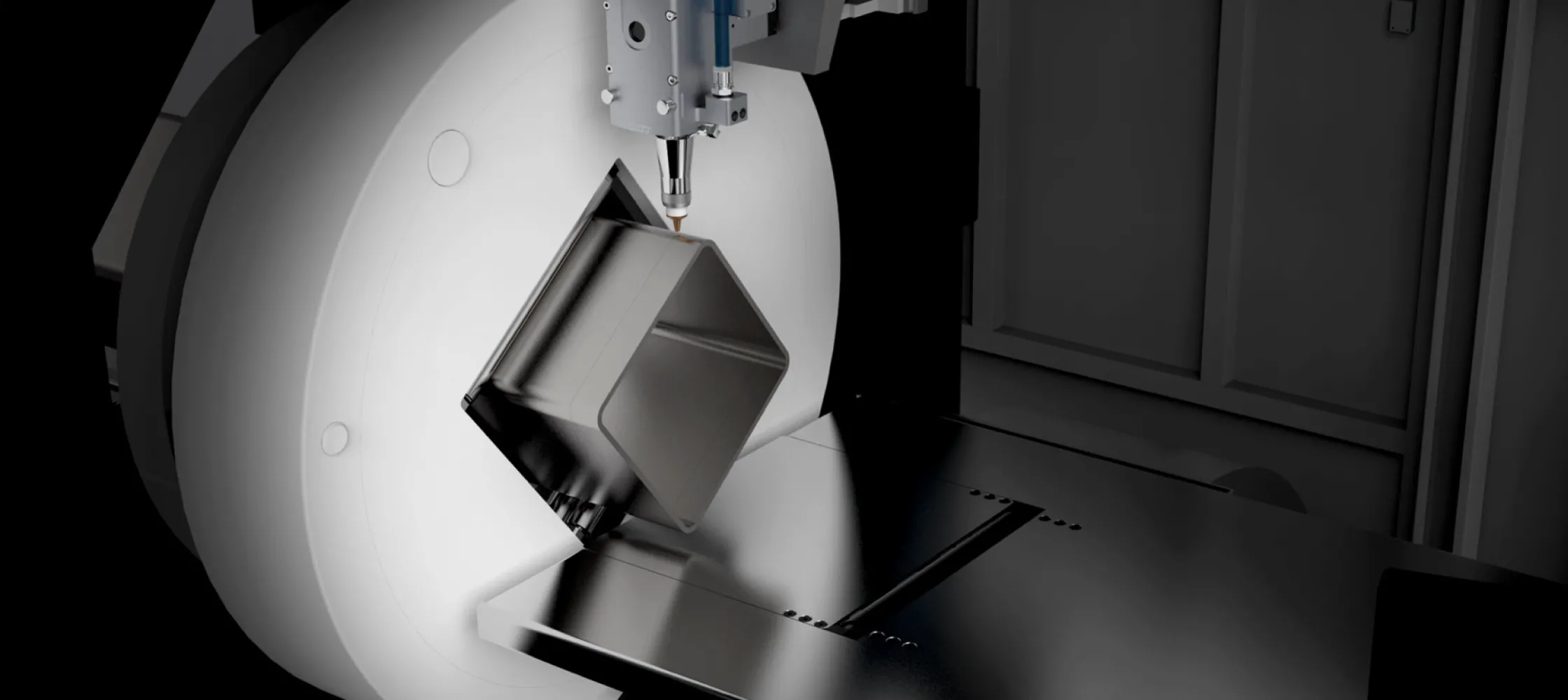

Edge collision prevention

When cutting rectangular or square tubes, the M series system calculates the tube’s corner rotation radius through the function, effectively preventing collisions between the laser head and the tube, and thus avoiding any damage to the laser head.

mseriesFeaturesContent-ServoFlipping

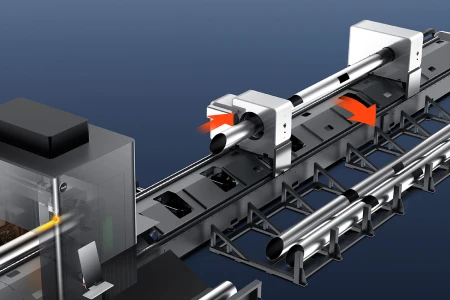

Servo-flipping unloading plate

The servomechanism of M series guarantees all machinery procedures work synchronously. The new servo-flipping plate has adaptive motions to facilitate the unloading process. While preventing redundant shaking or moving of the work piece, the plate is able to automatically categorize work pieces and remnant into different piles, thus lowering labor costs.

mseriesFeaturesContent-pneumaticChuck

Airtight pneumatic chuck

Bodor’s airtight pneumatic chuck is intended to balance the act of high efficiency and low maintenance requirements. The 4-chuck mechanism of M series completes cutting in just 2 secs. Its airtight feature makes the chuck dust-resistant, meaning that dust cannot contaminate or cause any negative effects on regular chuck operations.

mseriesFeaturesContent-waste

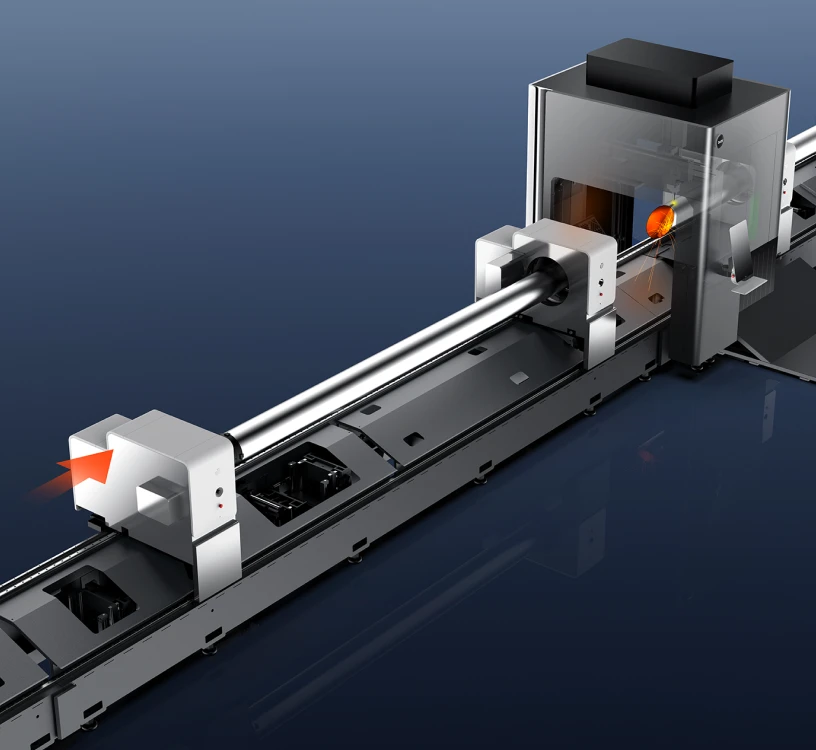

Tackling manufacturing waste

Bodor strives to be as efficient as possible at converting raw materials into products and reducing the amount of waste generated. This is the reason why M series is set to be waste-free in cutting operations. The extra 4th chuck of M series enables clamping at full, making sure that M series generates quality cuts even for the very last work piece. Without leaving leftovers, M series is able to effortlessly process a wide range of raw materials and profiles.

mseriesFeaturesContent-bevelCut

Excellent bevel cuts (optional)

The bevel cutting option of M series enables the production of high-precision bevel cuts in multiple degrees, optimizing subsequent assembly procedures and welding performance while lowering production costs.

mseriesFeaturesContent-weldSeam

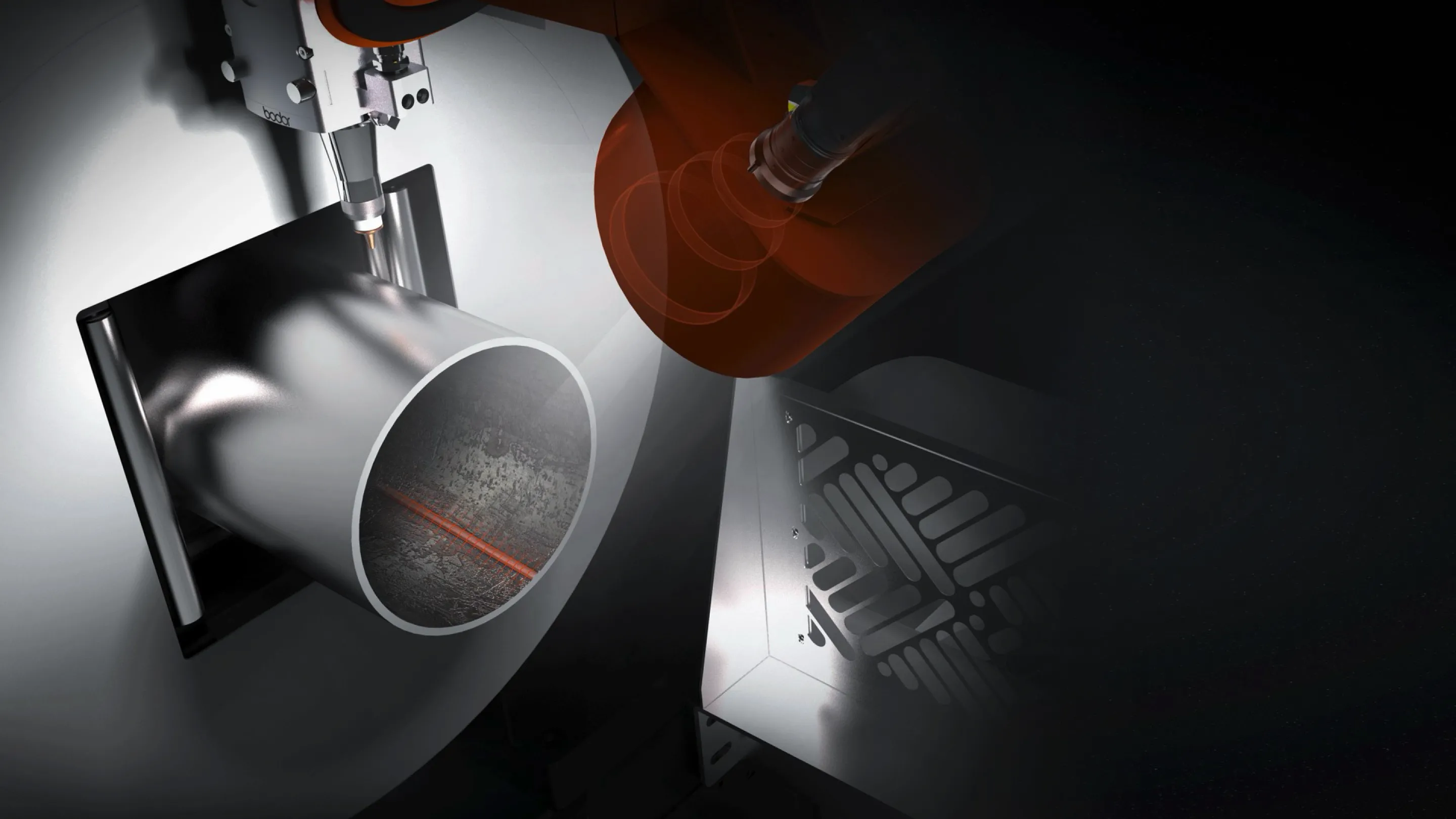

Weld seam identification (optional)

With a simple camera set-up, M series can quickly detect weld seams on a variety shapes of tubes, even those located on the inside. This option is particularly applicable to manufacturers who would like to avoid weld seams during laser cutting.

Specifications & parameters

M2

M3

Laser Output Power 6000W / 3000W / 1500W
Chuck Quantity 4
Shortest Remaining Material 0
Effective Square Tube Cutting Scope □8*8-□230*230mm
Rectangular Tube Edge Length 8mm-230mm
Effective Round Tube Cutting DiameterΦ8-Φ230mm
Max. Machinable Tube Length 6500mm
Max. Chuck Rotating Speed 110r/min
X/Y-Axis Positioning Accuracy 0.06mm/m
X/Y-Axis Repositioning Accuracy 0.04mm
Max. Tube Weight 300kg
Laser Output Power 6000W / 3000W
Chuck Quantity 4
Shortest Remaining Material 0
Effective Square Tube Cutting Scope □25*25-□356*356mm
Rectangular Tube Edge Length 25mm-356mm
Effective Round Tube Cutting DiameterΦ25-Φ356mm
Max. Machinable Tube Length 12000mm
Max. Chuck Rotating Speed 75r/min
X/Y-Axis Positioning Accuracy 0.06mm/m
X/Y-Axis Repositioning Accuracy 0.04mm
Max. Tube Weight 800kg

Applicable industries

M Series has met the manufacturing needs of large products and complex processes in heavy industries.

mseriesIndustriesImg-pipelines

Pipelines for oil and gas

M series demonstrates extraordinary strengths in cutting results when it comes to piping materials up to 20mm wall thickness, making it the best choice for pipeline production in the Oil and Gas industry.

mseriesIndustriesImg-aerospace

Aerospace

M series is able to provide tailored solutions for the aerospace industry. It is especially applicable to the manufacturing of aircraft and spacecraft products.

mseriesIndustriesImg-industrial

Industrial architecture

M series enhances the makes of industrial architecture like factories and power plants for a lower unit cost with more energy-efficient operations.

mseriesIndustriesImg-elevators

Elevators

One of M series’s core business scopes revolves around the supply and building of elevators as it brings in significant cost reduction.

mseriesIndustriesImg-machinery

Heavy machinery

Thanks to its large load carrying capacity, M series exhibits an exceptional advantage in the production of heavy equipment like crawler tractors, skidders, excavators, and aerial lifts.
