Features

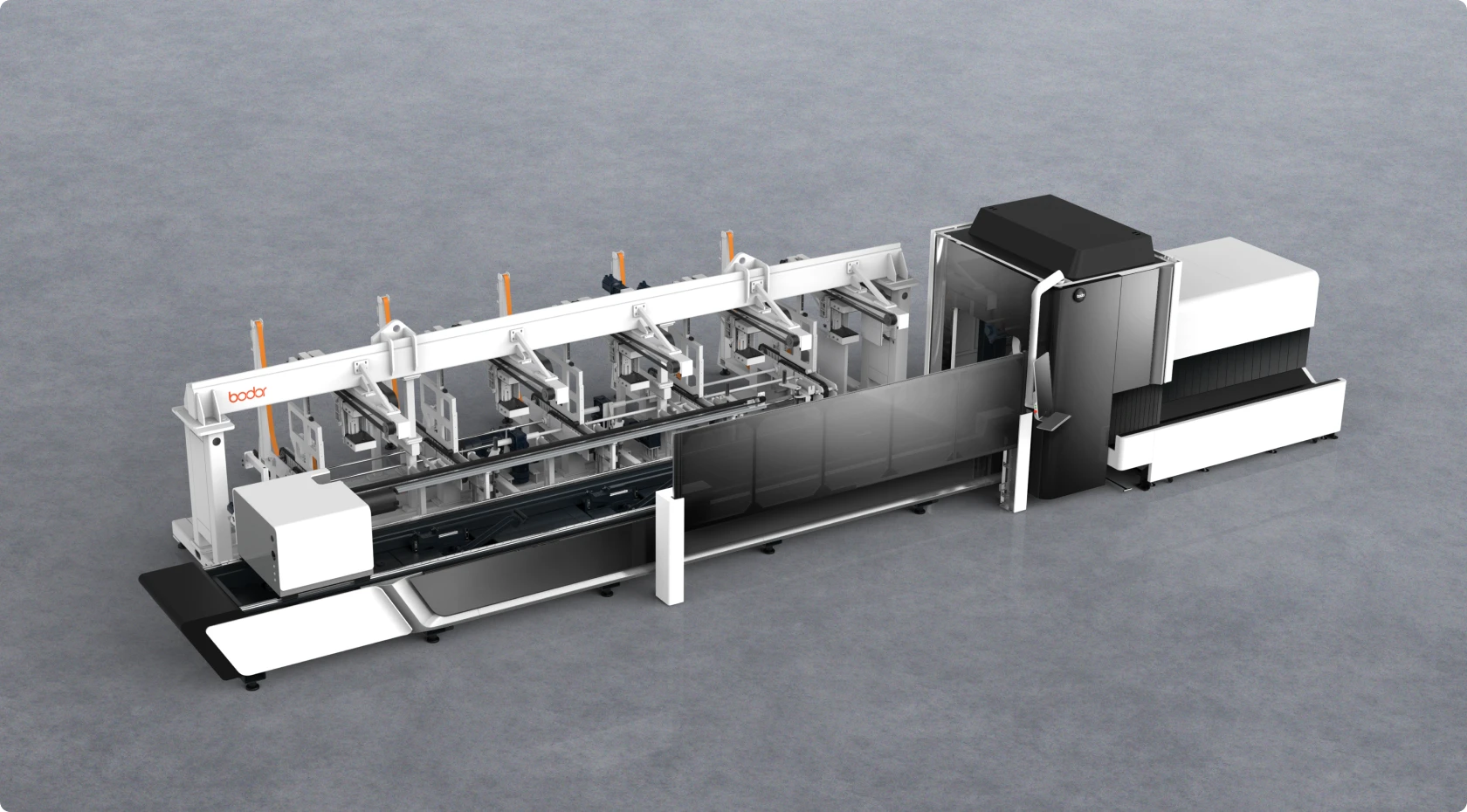

Professional Automatic Tube Loading Device
Professional Automatic Tube Loading Device

Automatic Loading

T-Trans automatically detects tubes and clamps the next tube to the standby place. After the processing for the previous tube finishes, the device loads the next tube in time and achieves constant processing in a real sense.

Professional Automatic Tube Loading Device

Intelligent Operation

Intelligent functions, like one-click preset, warning for lack of tubes, adding tubes when processing, anti-scratch for tubes, are available with clear and convenient accesses on the controlling interface.

Professional Automatic Tube Loading Device

Flexible Loading

T-Trans easily loads 3m- 9.2m tubes with diameters from 20mm to 230mm. Tubes, like rounds square tubes, rectangular tubes, etc., are all processable.

Applicable Model


p3
c3

T Series

All-round fiber laser metal tube cutting machine

READ MORE >>

M230

Flagship fiber laser metal tube cutting machine

READ MORE >>

Applicable Industry


applicable industry

Kitchenware industry

applicable industry

Pipeline industry

applicable industry

Fitness equipment industry

Technical Data

Module dimensions: 8050*3237*2192mm 10750*3230*2192mm
Weight: 7600kg 11200kg
Round tube size range Φ20-Φ230mm
Square tube size range □20 - □160mm
Rectangular tube size range: 200mm≥ Side length ≥20mm,Circumscribed circle diameter≤230mm
Maximum tube weight: 200kg 30kg/m
Tube loading length range: 3000mm-6500mm 3000mm-9200mm
Maximum load capacity of storage bin: 2t 3t
Maximum diameter of bundle: 900mm
