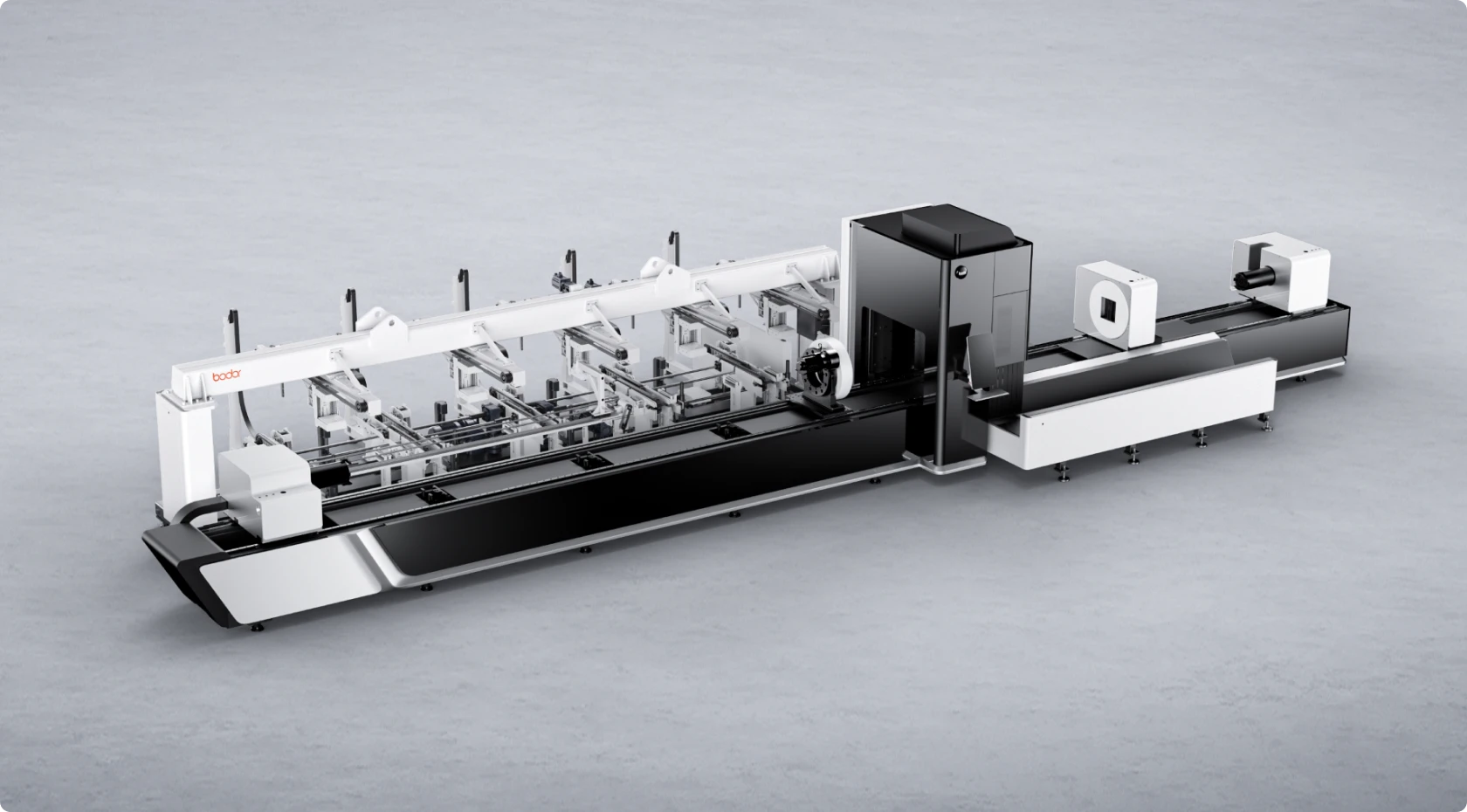

M-Trans2 easily loads 3m- 6.5m tubes with diameters from 20mm to 230mm. Tubes, like rounds square tubes, rectangular tubes, etc., are all processable.
M-Trans2 automatically detects tubes and clamps the next tube to the standby place. After the processing for the previous tube finishes, the device loads the next tube in time and achieves constant processing in a real sense.
Intelligent functions, like one-click preset, warning for lack of tubes, adding tubes when processing, anti-scratch for tubes, are available with clear and convenient accesses on the controlling interface.
Flagship fiber laser metal tube cutting machineREAD MORE >>
|Round tube size range||Φ20-Φ230mm|
|Square tube size range||□20 - □160mm|
|Rectangular tube size range||200mm≥Side length≥20mm ,
Circumscribed circle diameter≤230mm
|Maximum tube weight||200Kg 30Kg/m|
|Tube loading length range||3000mm-6500mm|
|Maximum load capacity of storage bin||2t|
Regardless of whether you require general advice or specific support, we are happy to help you.
* Owing to the real-time updating of products and technologies, the datas and product pictures on the site are for reference only
