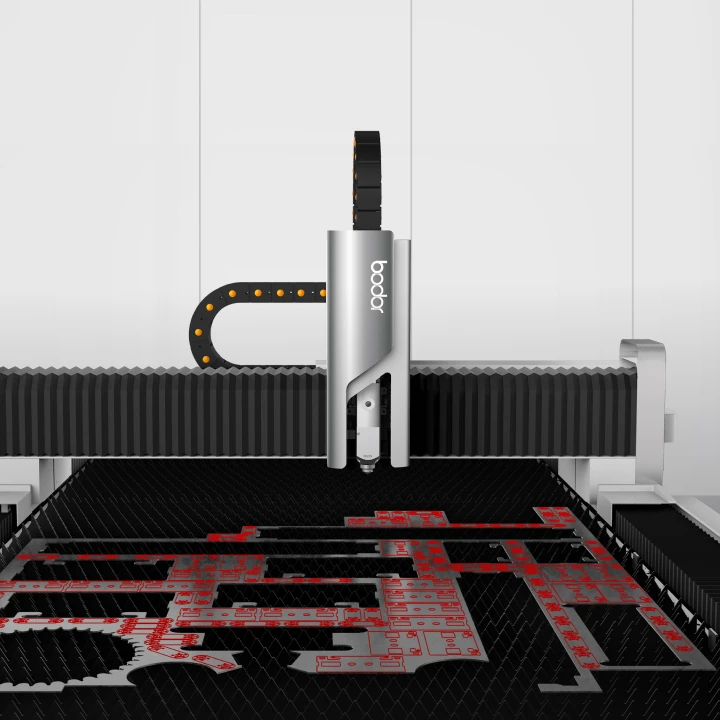

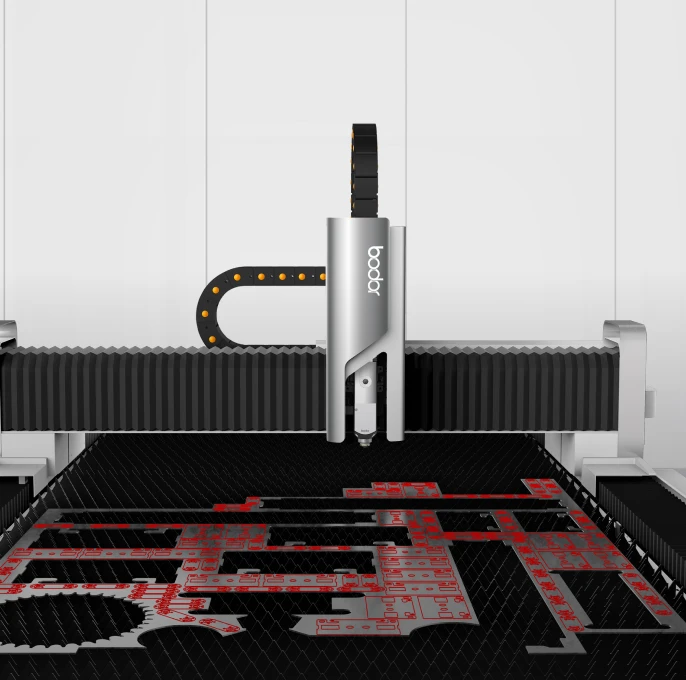

Bodor B Series Sheet Metal Fiber Laser Cutting Machine with Pallet Changer
Embrace the Bodor B series and experience the synergy of easy operation and reduced expenses. It’s the smart choice for businesses aiming to cut costs of metal processing.
Easy operation, effortless efficiency
Precision at pace
Maximize productivity with the Bodor B series - where high-speed meets high-precision in sheet metal cutting, thanks to its advanced pallet changer technology.
Innovation in integration

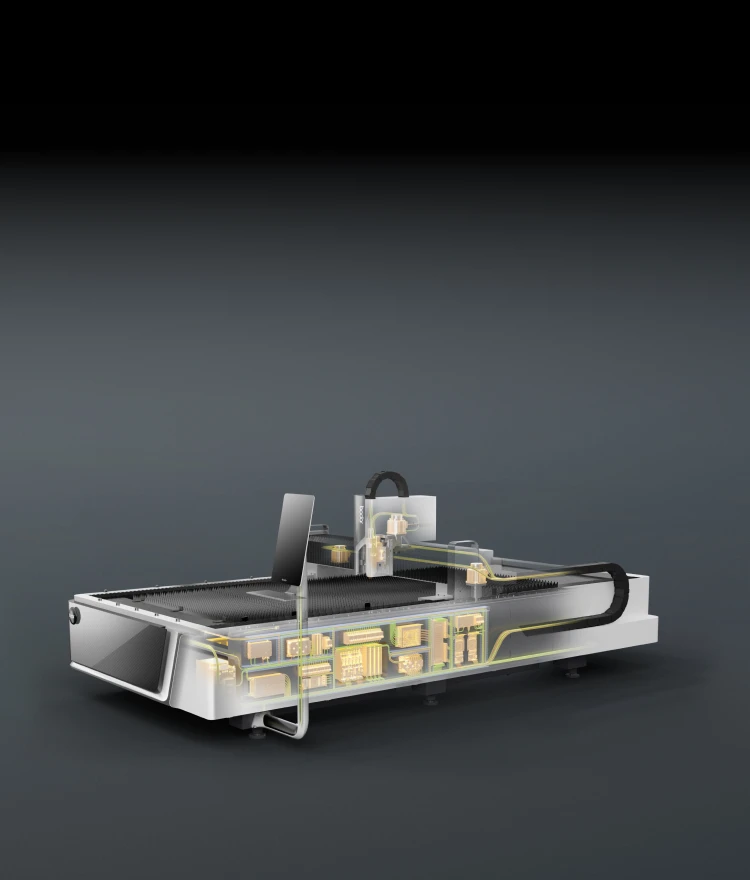

The Bodor B series redefines efficiency with its integrated fiber laser system, ensuring seamless operation from start to finish for every project size and power demand.
Streamlined for success
The Bodor B series offers a streamlined solution for your laser cutting needs, combining cost-effective operation with flexible power and size configurations to fit your business perfectly.
Features & enhancements

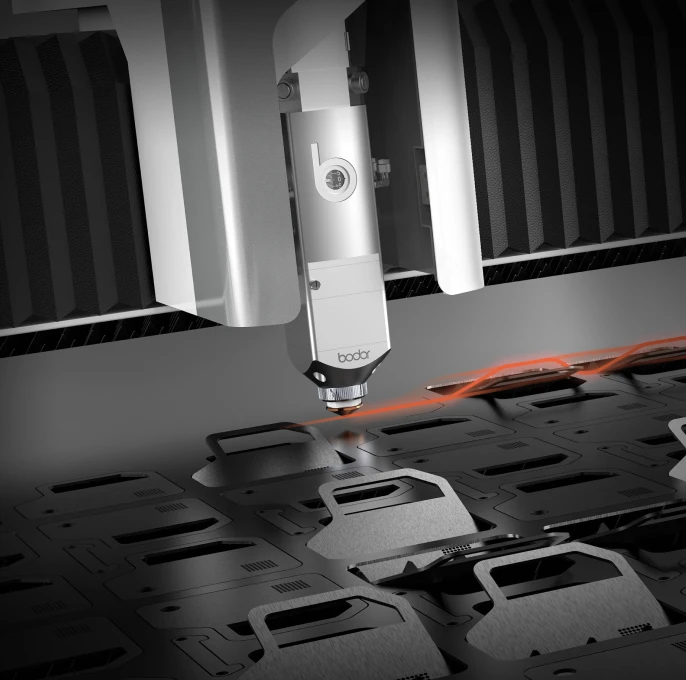

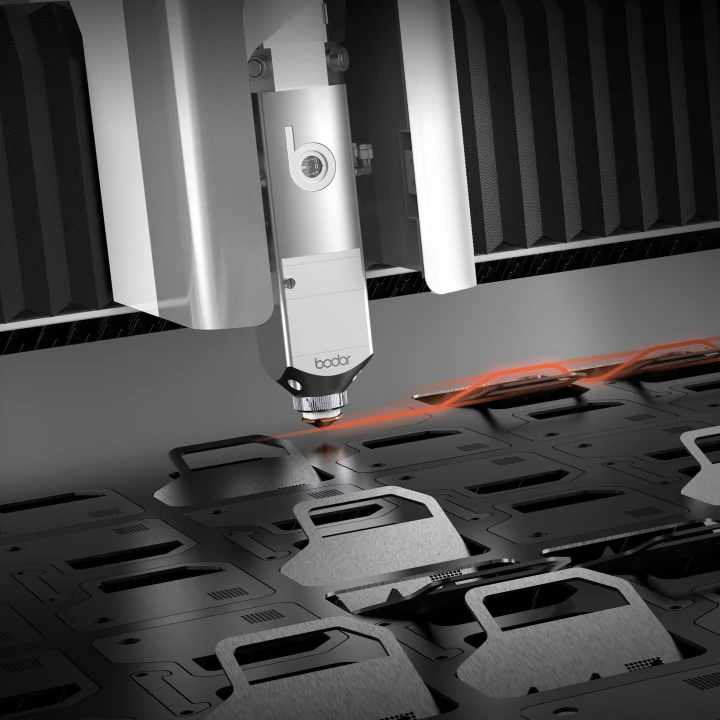

Active obstacle avoidance system
BodorGenius, Bodor’s intelligent laser head, uses sensors and algorithms to detect potential obstacles like tilting parts and automatically avoids a potential collision. It largely ensures the stability as well as operating efficiency in the cutting process.
Anti-burning mineral casting
Bodor's newly developed anti-burning casting material provides numerous advantages in slag removal, operations, and modular design. When in use, material residue automatically separates from the anti-burning plate, largely lowering maintenance costs and offering better durability. Its lightweight structure as well makes it easy to replace.

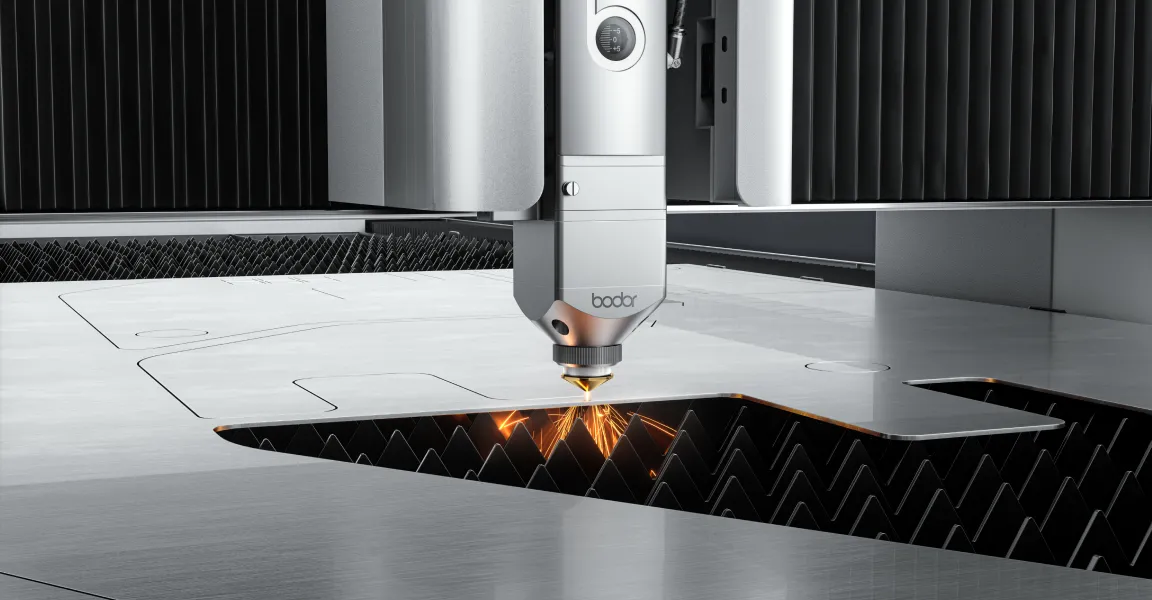

Lightning piercing
The technology offers rapid, precise piercing with reduced time. It features monitored processes for efficiency, focus adjustment for seamless piercing, and integration with BodorGenius. This enables quick piercing in sync with the cutting head's movement, optimizing operations for medium-thick plates without extra time or motion.
Intelligent remnant layout
To achieve maximum material utilization, all you need to do is uploading pictures of the remnant to the control system with your mobile phone. B series is able to automatically finish positioning as well as nesting. The higher the percentage of utilization, the more economical the process. Enjoy the benefits of significantly increased cost savings.
Nesting software compatible with Tekla
The nesting software for the Bodor B series has strong compatibility with Tekla, streamlining your workflow by effortlessly reading material specifications from Tekla files. It simplifies the cutting process with smart material utilization, ensuring maximum efficiency and less waste.
Specifications & parameters
B3
B4
B6
| Working area | 3048mm*1524mm |
| Laser output power | 24000W / 12000W / 6000W / 3000W / 1500W |
| Positioning accuracy | ±0.05mm/m |
| Repositioning accuracy | ±0.03mm |
| Max. linkage speed | 110m/min |
| Max. acceleration | 1.5G |
| Working area | 4000mm*2000mm |
| Laser output power | 24000W / 12000W / 6000W / 3000W / 1500W |
| Positioning accuracy | ±0.05mm/m |
| Repositioning accuracy | ±0.03mm |
| Max. linkage speed | 110m/min |
| Max. acceleration | 1.5G |
| Working area | 6100mm*2500mm |
| Laser output power | 30000W / 24000W / 12000W / 6000W / 3000W |
| Positioning accuracy | ±0.05mm/m |
| Repositioning accuracy | ±0.03mm |
| Max. linkage speed | 110m/min |
| Max. acceleration | 1.5G |
Applicable industries
The Bodor B series provides cost-efficiency and high performance for various industries looking to upgrade metal processing methods and improve competitiveness.
Metal fabrication
B series delivers precise and efficient cutting for various metal types, enhancing productivity in manufacturing and fabrication.
Signage and display making
Ideal for creating intricate designs and custom signage with precision and speed.
Furniture and home appliances
Perfect for cutting complex components and decorative elements, offering versatility and precision in furniture and appliance manufacturing.
Ship containers
Precise cutting ensures the quality of parts.
Engineering machinery
Choices from 1.5kW to 30kW power options, adaptable to various thicknesses and materials.
